EARTHING SYSTEM

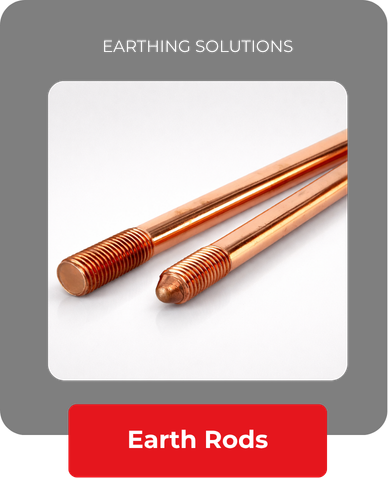

Earth Rods
Mighty Inc Earth Rods are expertly engineered to deliver consistently low earth resistance, offering a highly efficient and cost-effective grounding solution for a wide range of electrical applications. Each rod is manufactured using a high tensile, low carbon steel core that is molecularly bonded with a layer of pure copper through an advanced electrolytic process, ensuring exceptional electrical conductivity and long-term mechanical strength.
The strong metallurgical bond between steel and copper provides outstanding resistance to corrosion, even in harsh soil conditions, significantly extending the product’s service life. Designed with precision rolled threads, these rods offer enhanced durability during installation while maintaining uniform copper coverage across the entire surface.
Built for performance and reliability, Mighty Inc Earth Rods ensure stable earthing, improved safety, and dependable protection for electrical systems, making them an ideal choice for both industrial and commercial grounding requirements.
Product Range
Earth Rod Technical Specifications
This table outlines the detailed specifications of Mighty Inc Earth Rods, including nominal size, length, thread size, rod diameter, unit weight, and corresponding part numbers. Designed for precision and performance, each variant is manufactured to meet high-quality standards, ensuring optimal conductivity, strength, and durability. The range of sizes and weights allows flexibility for different grounding requirements, making it easy to select the right earth rod for reliable and efficient earthing solutions.
| Nominal Size | Length (mm) | Thread Size | Rod Diameter (mm) | Unit Weight (kg) | Part Number | MOQ (pcs) |
|---|---|---|---|---|---|---|
| 5/8" | 1200 | 5/8" | 14.2 | 1.53 | MIER-01 | 500 |
| 5/8" | 1500 | 5/8" | 14.2 | 1.88 | MIER-02 | 500 |
| 5/8" | 1800 | 5/8" | 14.2 | 2.29 | MIER-03 | 500 |
| 5/8" | 2400 | 5/8" | 14.2 | 3.00 | MIER-04 | 500 |
| 5/8" | 3000 | 5/8" | 14.2 | 3.79 | MIER-05 | 500 |
| 3/4" | 1200 | 3/4" | 17.2 | 2.19 | MIER-06 | 500 |
| 3/4" | 1500 | 3/4" | 17.2 | 2.73 | MIER-07 | 500 |
| 3/4" | 1800 | 3/4" | 17.2 | 3.27 | MIER-08 | 500 |
| 3/4" | 2400 | 3/4" | 17.2 | 4.35 | MIER-09 | 500 |
| 3/4" | 3000 | 3/4" | 17.2 | 5.44 | MIER-10 | 500 |
